Hitpad Gaming Standalone Driver Setup
Basic Setup
1. Connect Your Device
Connect the Hitpad to your Windows computer using the provided USB to USB-C cable. And open the driver website: drv.hjkgaming.com

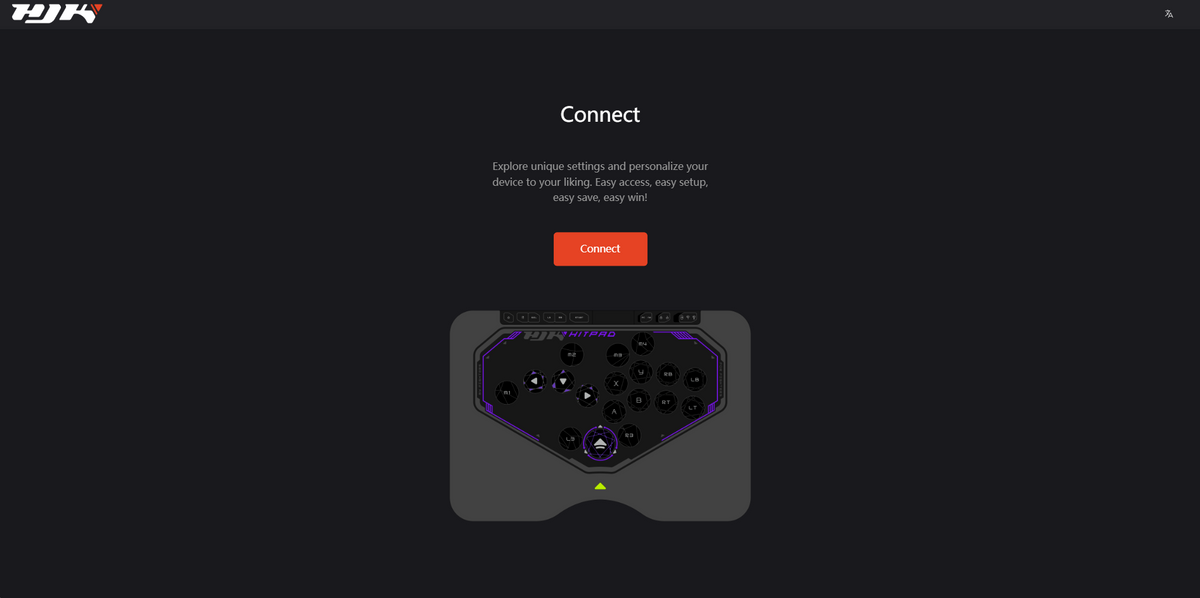

2. Click “Connect”
3. Connect Your HitPad

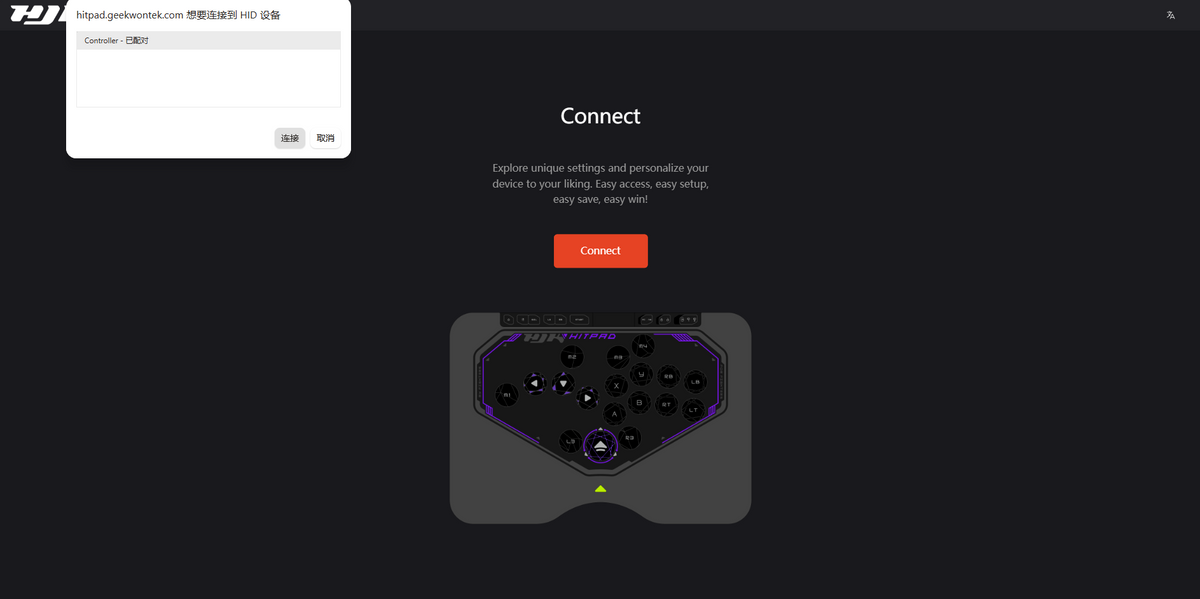

A Connect HID Device dialog will appear in the upper-left corner of the page. Select HJK HitPad in the dialog, then click Connect.
4. Enter the Driver Interface

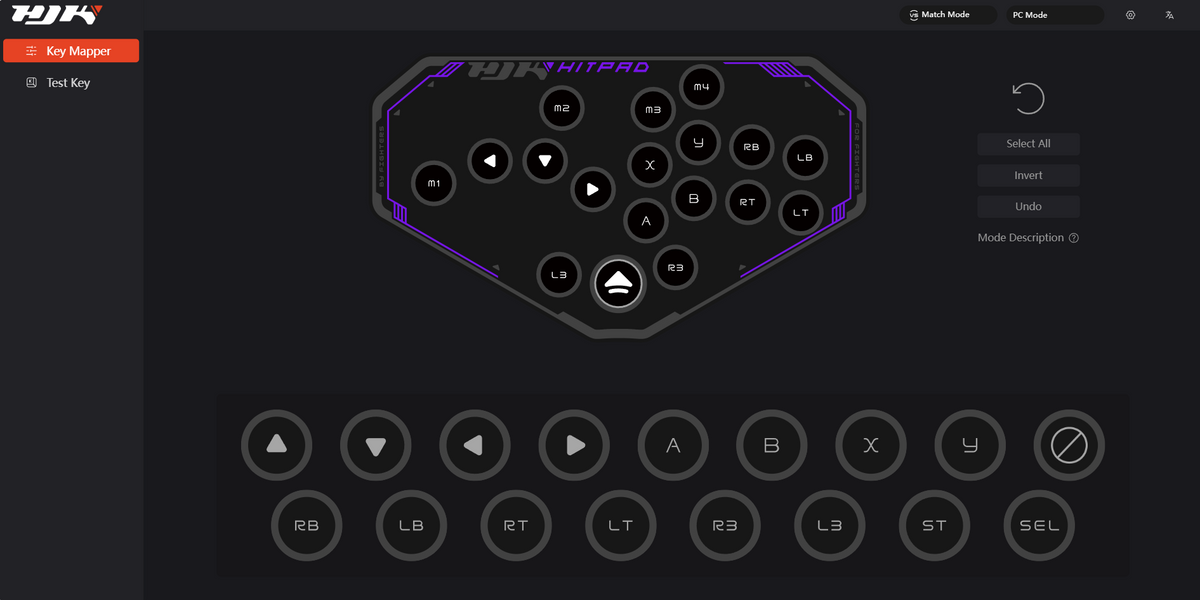

You will then enter the driver interface. By default, the Key Mapping & Remapping page will be displayed.
5. Select the Key to Remap

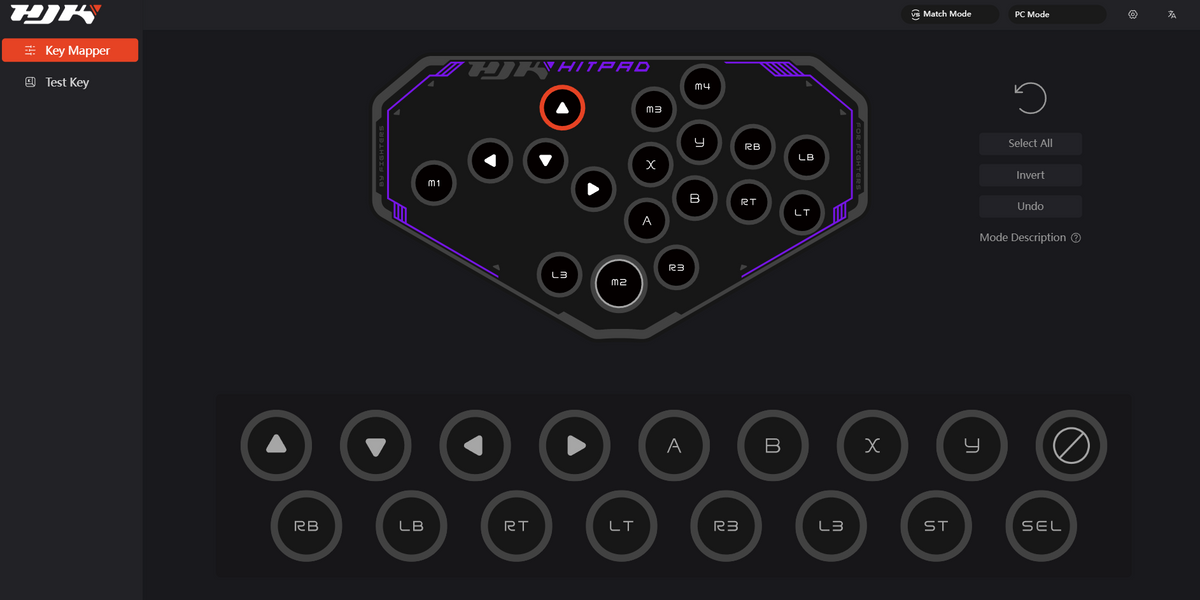

In the HitPad layout at the top of the page, select the key you want to modify. The selected key will be highlighted in orange. Then select the key at the bottom that you want to remap to.
6. Remapping Complete
The selected key will immediately change to the assigned function, indicating that the remapping is complete.
7. Switch to Custom Mode

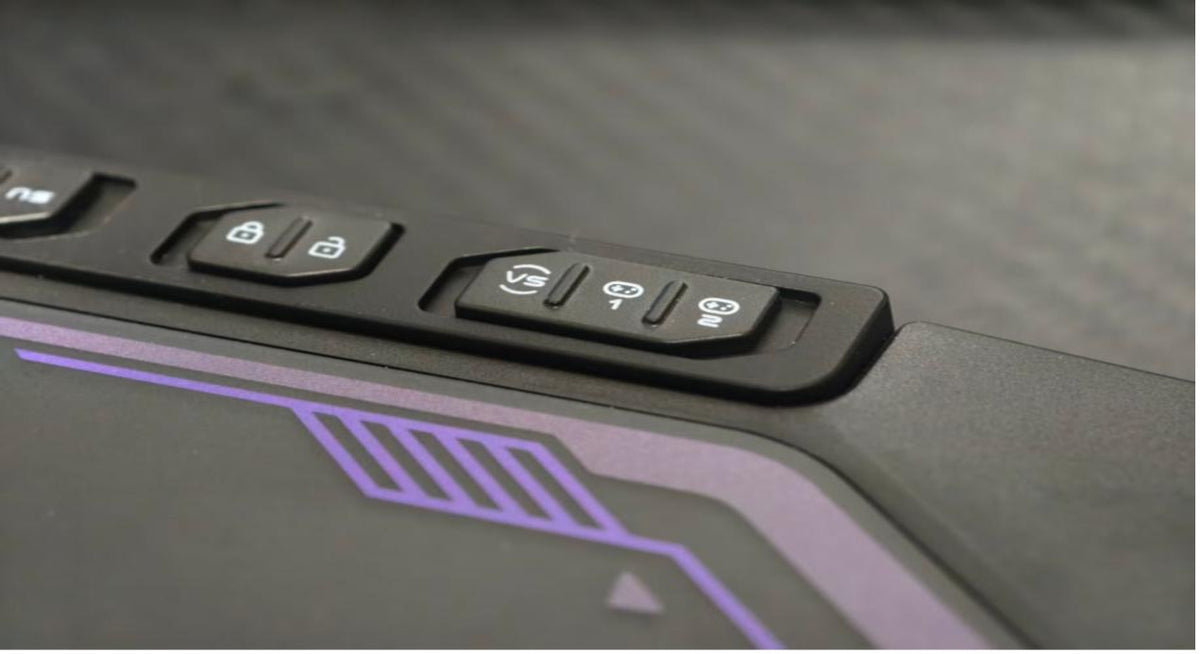

Please note that HitPad is in Tournament Mode by default. In this mode, multiple keys cannot be assigned to the same function, and SOCD settings cannot be changed (the default SOCD setting is Neutral).To enable these functions, switch the selector on the upper-right corner of the HitPad to Custom 1 or Custom 2.
8. Customize SOCD and Lighting

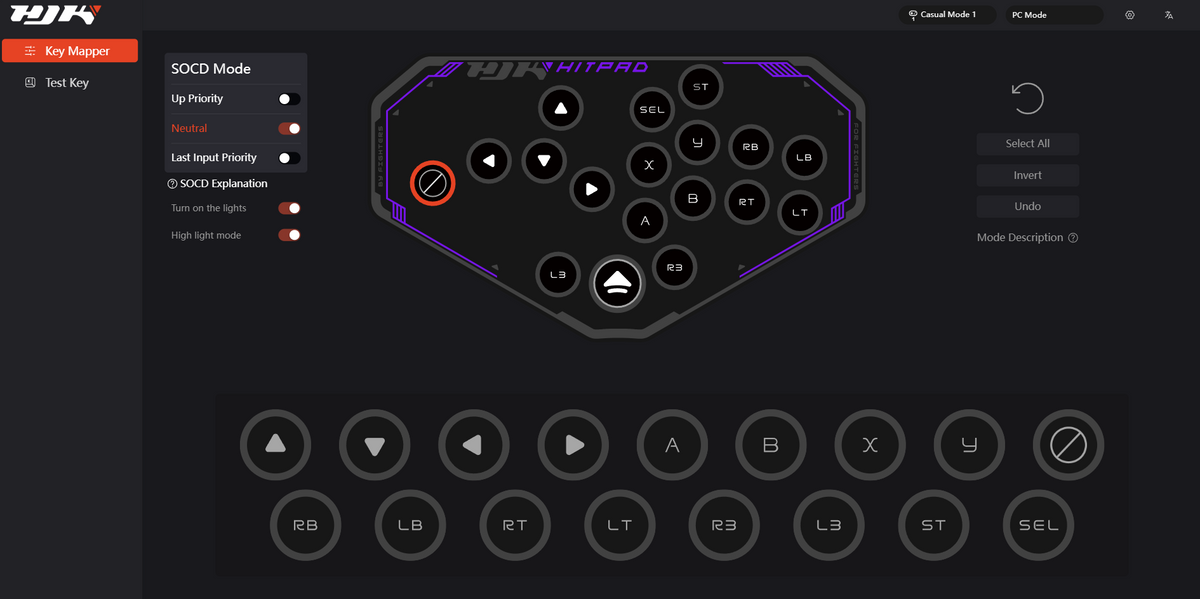

Once you switch to a Custom mode, additional SOCD and Lighting options will appear on the left side of the interface. You can now assign the same function to multiple keys or change the SOCD setting. Three SOCD modes are available:
- ← + → = N, ↓ + ↑ = ↑
- ← + → = N, ↓ + ↑ = N
- ← + → = →, ↓ + ↑ = ↑ (the most recently pressed direction takes priority)
9. Assign the Same Function to Multiple Keys

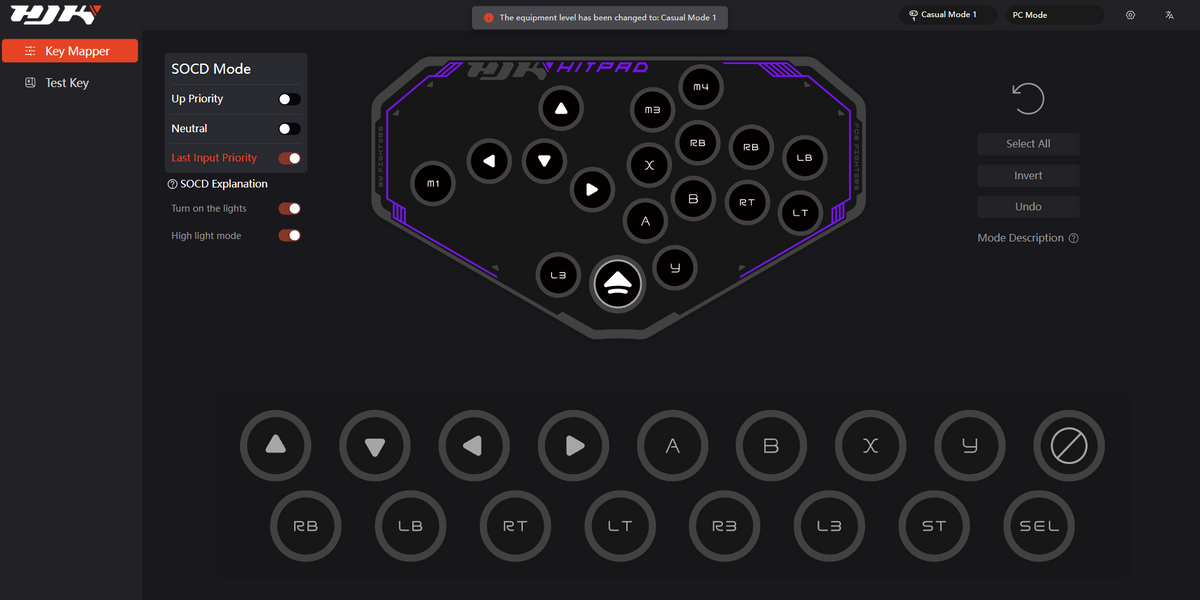

You can also assign the same function to multiple keys. The example below shows a Double Jump setup.
10. Test Your Keys

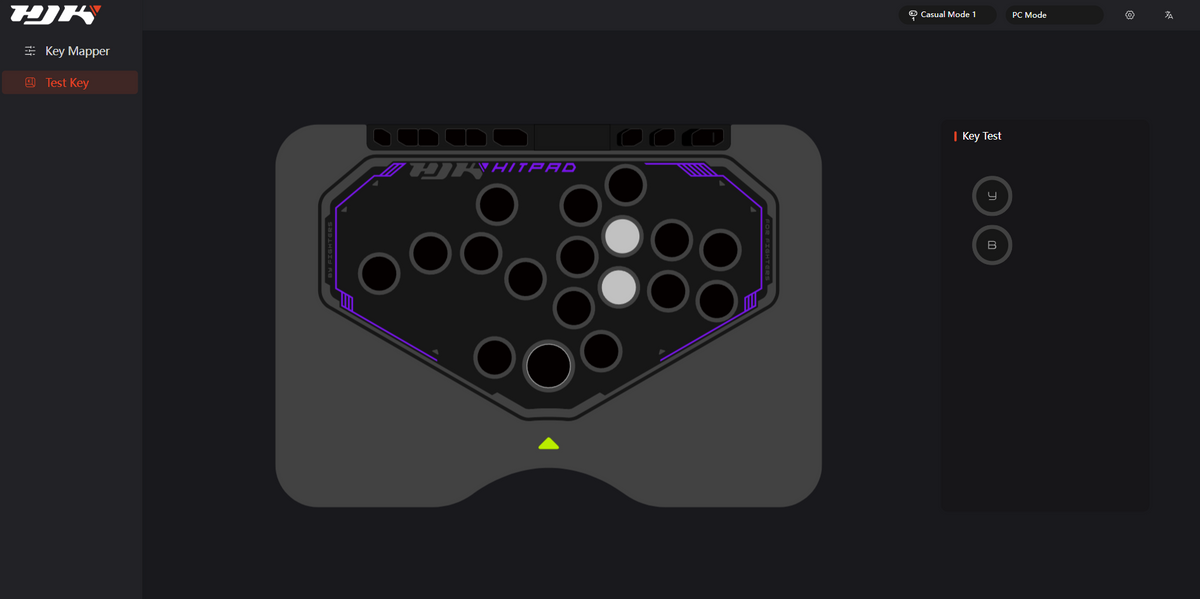

The Test Key page on the far left allows you to test your HitPad keys and make sure your settings are working correctly.
